Product Name:

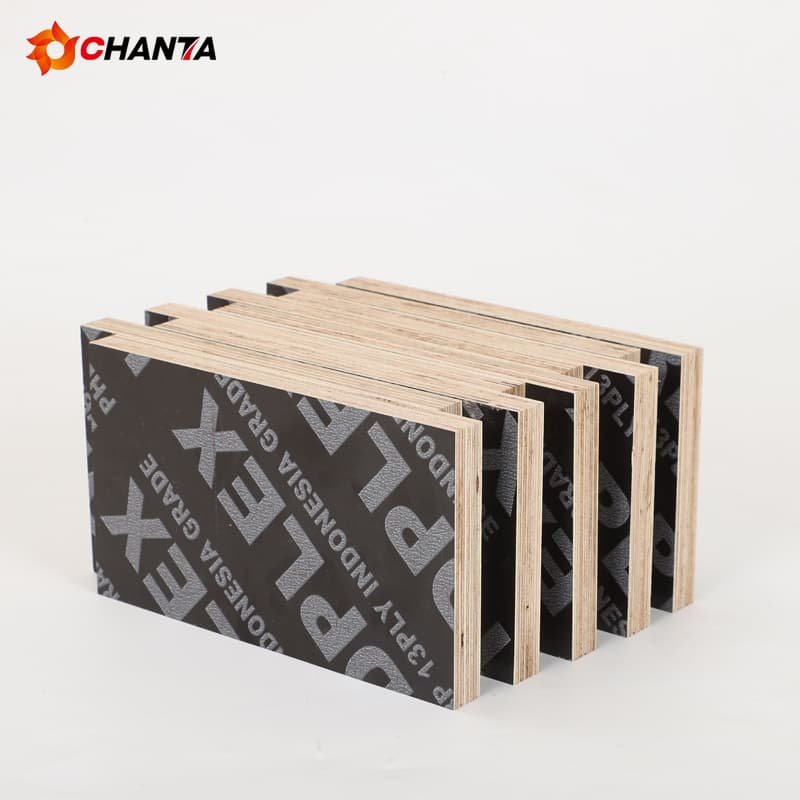

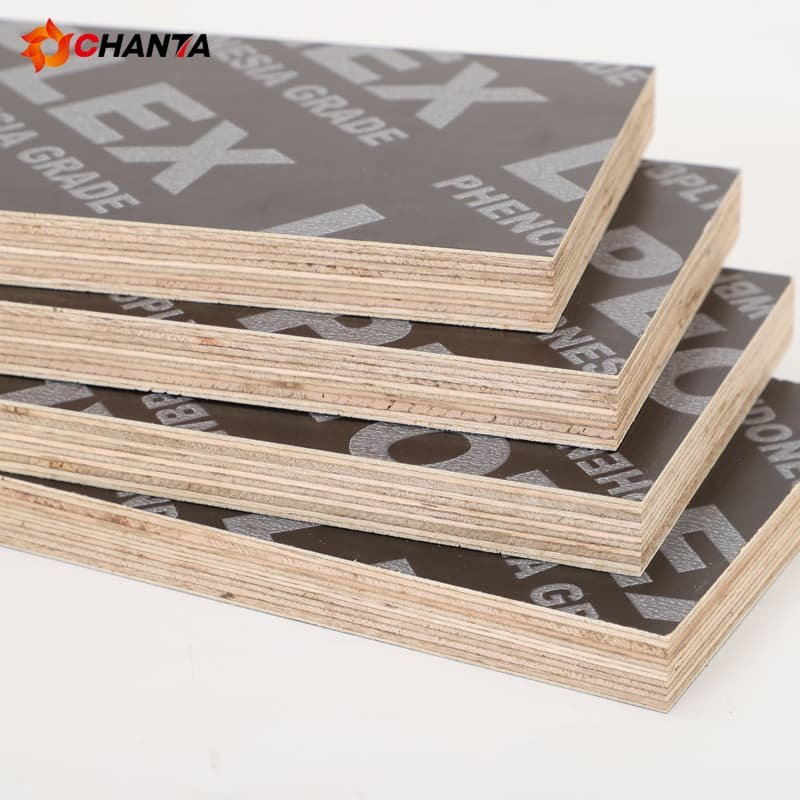

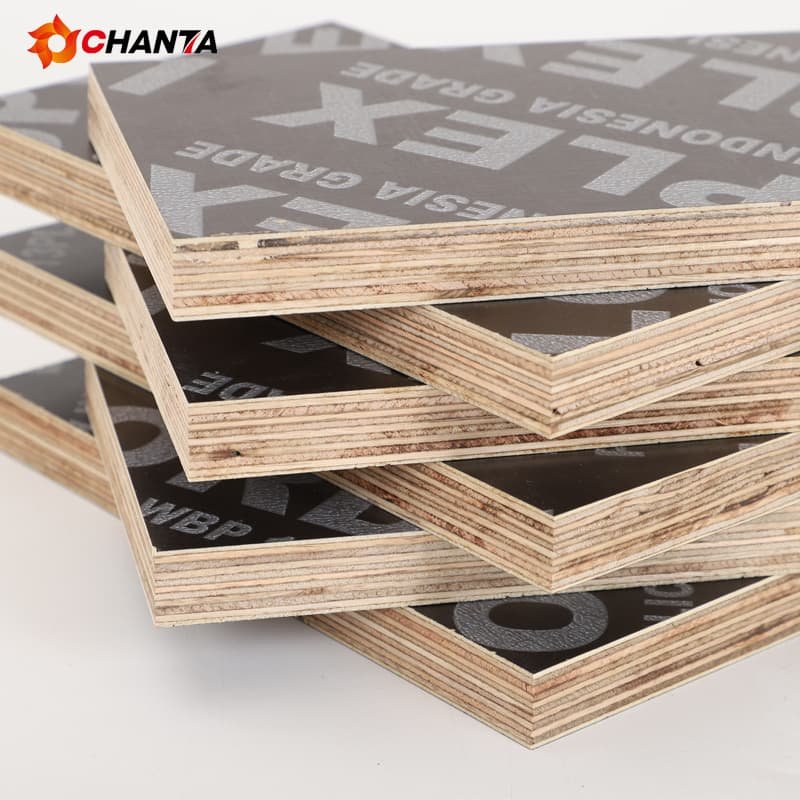

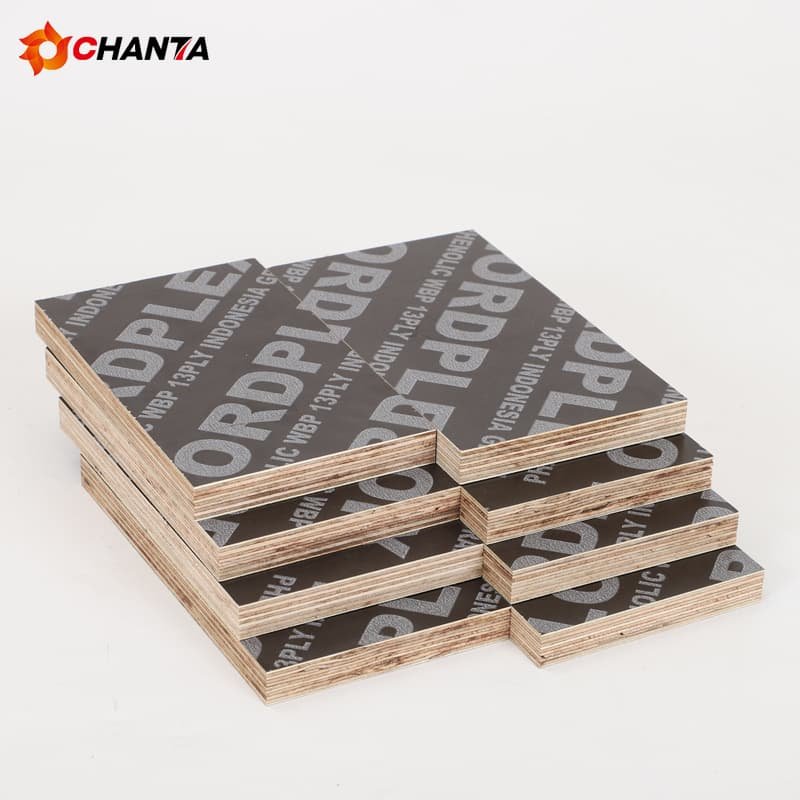

Lordplex Film Faced Plywood
Price:
500 - 1999 Pieces $13.50
Size:
1220*2440/1250*2500/610*2440/1220*1220
Material:
Hardwood
Port:
Qing Dao
Glue:
WBP Phenolic
Place of Origin:
Shandong, China
MOQ:
>500 Pieces


Detailed introduction



The core materials of film faced plywood mainly include poplar wood and eucalyptus wood,According to the difference of film paper and core material, there are 5 kinds of templates, namely skyplex film faced plywood,lordplex film faced plywood,chantaplex film faced plywood,buildplex film faced plywood.


A. Ordinary board pine is better, not easy to deform, and has high strength.

B. Poplar basically uses film-covered board, that is, blackboard, which is used for high engineering requirements.

C. Eucalyptus is more brittle, and the wood template of all eucalyptus is less, and its own weight is larger than that of pine.


It consists of a panel and a support system. The panel is the part that makes the concrete shape; the support system is the structural part that stabilizes the position of the panel and bears the upper load. The quality of the formwork is related to the quality of the concrete project. The key is accurate size, firm assembly, tight joints, and convenient assembly and disassembly.


Product Description



Product
Lordplex film faced plywood
Species
Hardwood
Size
18mm*1220*2440 or customize
Glue
WBP Phenolic
Film
Dynea Brown
Grammage
120g/㎡
Moisture Content
8%-10%

Density
630kg/cbm

Bonding Quality
Bonding Quality
Max:1.90Mpa
 Min:      0.85Mpa
Damage Rate
70%
Bending Modules of Elasticty
Longitudinal
9500Mpa
Lateral
7500Mpa
Bending Strength N/mm
Longitudinal
85.1Mpa
Lateral
68.3Mpa
Cycle Life
About 20-30 repeated using times according to formwork application projects.
